Tramex Concrete Determinator Tech Kit

Description

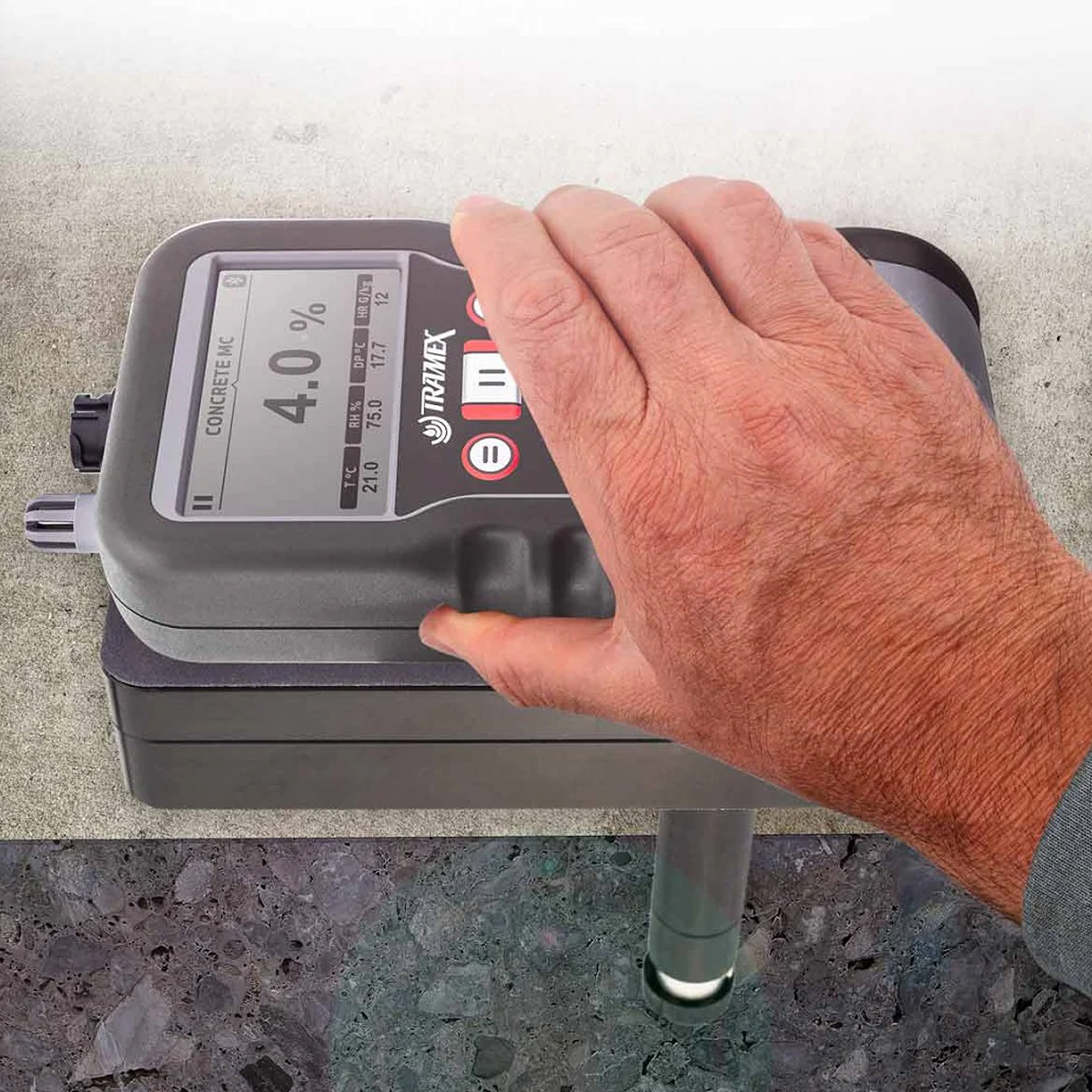

Compact Moisture Meter Kit For Measuring Surface and In Situ Moisture Content Of Concrete Floors and Slabs. A compact kit for instant and precise testing of both Surface and In-Body concrete Moisture Content in floors and slabs using a unified gravimetric-based testing method. The Tramex CMEX5 digital concrete moisture meter allows for non-destructive quantitative testing of concrete and comparative testing per ASTM F2659. The reusable Concrete Moisture Determinator Probe used with the CMEX5 allows for in-depth moisture content probe testing within the concrete, down to an extendable depth of up to 100mm, Diameter 19mm.

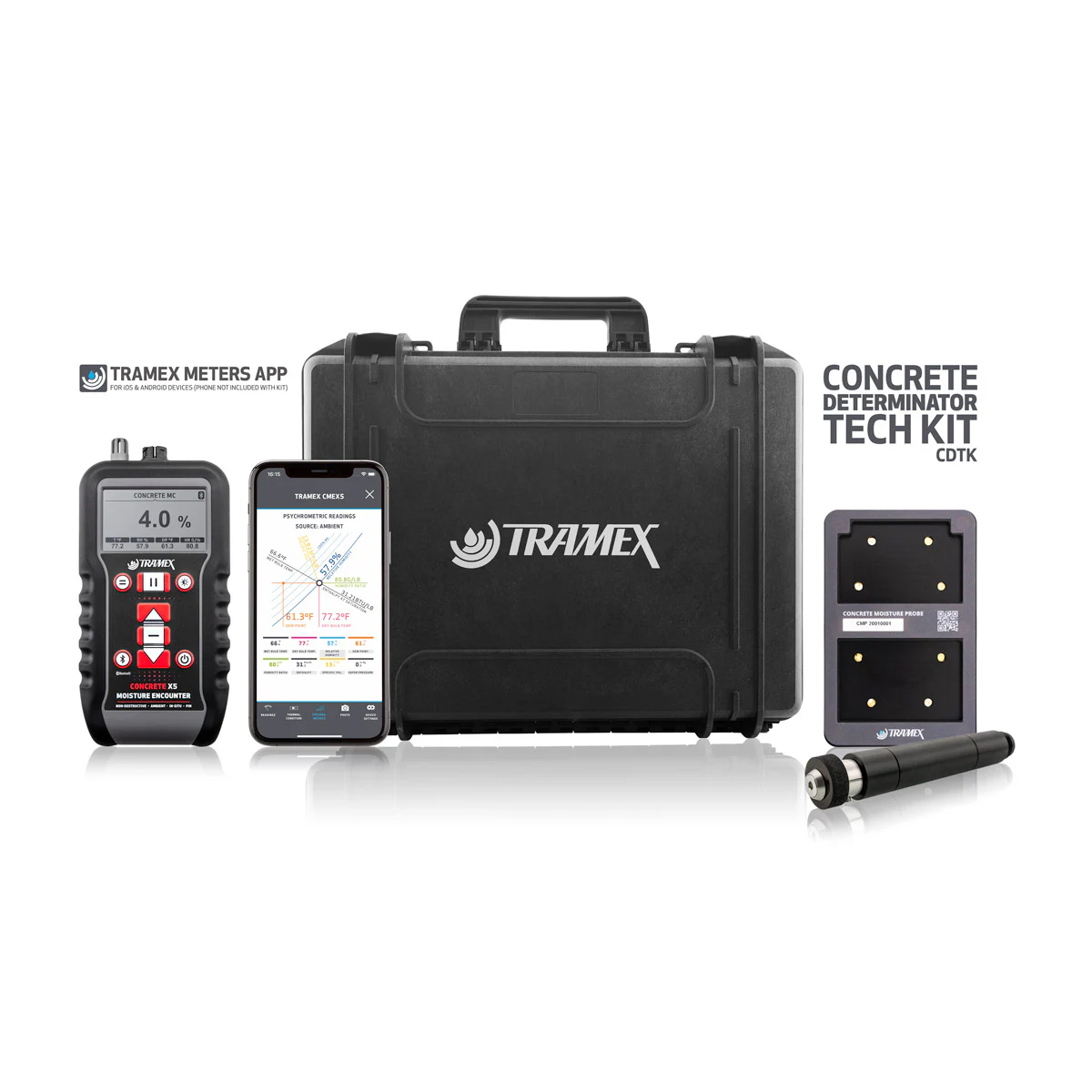

Kit Contents:

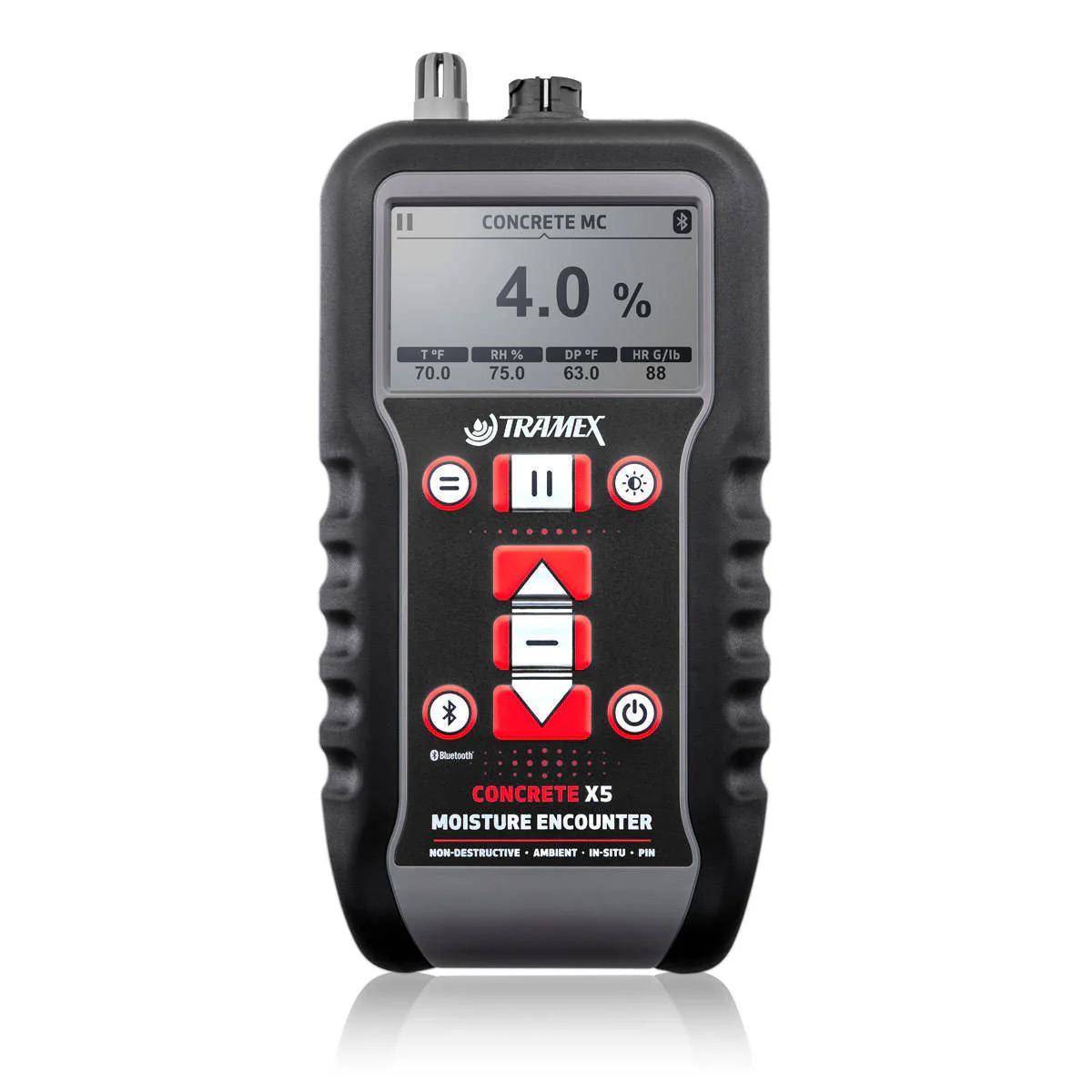

Concrete Moisture Encounter X5 – CMEX5.
Free App available for Android and iOS (phone not included).

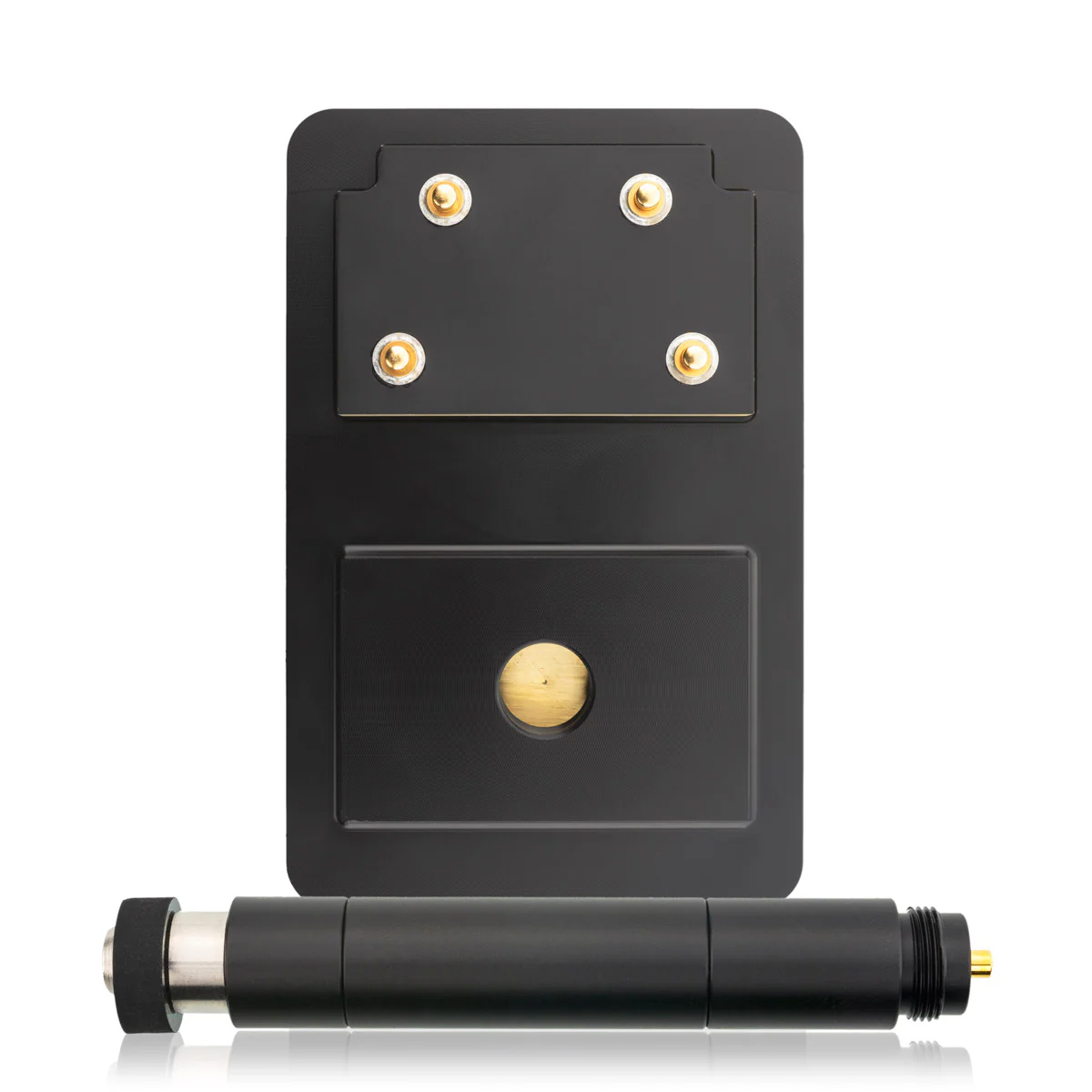

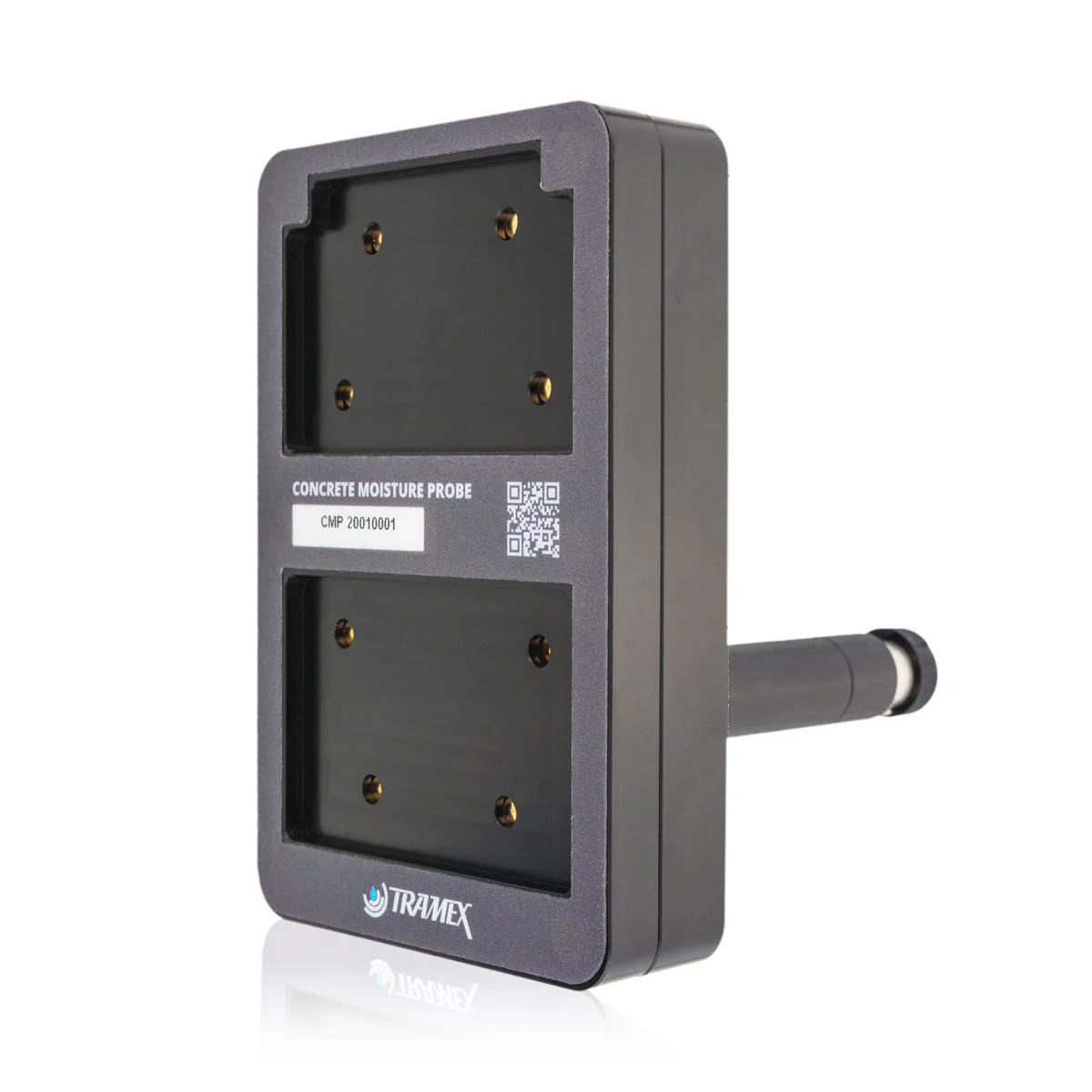

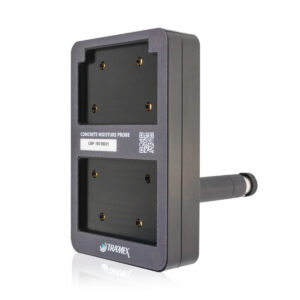

Concrete Moisture Determinator Probe.

Space

Kit Size: 43.5cm x 36cm x 14cm
Weight: 2.95kg
Power: 2 x AA batteries

Concrete Moisture Encounter X5 – CMEX5 – Measuring Range:

• Depth of penetration in concrete: approx. 20mm
• Moisture content for Concrete: 0 → 6.9 %
• Comparative for Gypsum floor screed: 0 → 12
• CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
• Reference scale: 0 → 100
• Relative Humidity: 0 → 99%
• (with optional Hygro-i2 ® probe): 0% → 99%RH +/- 2% @ 25°C / 77°F
• Moisture content for wood (with optional wood pin probes): 5 → 30 %

Concrete Moisture determinator probe – Measuring Range:

• Moisture Content for Concrete with Tramex CMEX5: 0 – 6.9%
• Depth of Penetration: 3cm probe depth for concrete between 5-10cm
• 5.7cm probe depth for concrete between 10-15cm
• 8.3cm probe depth for concrete between 15-22cm
• 10.8cm probe depth for concrete between 22-28cm
